Bluetooth pairing with your gateway
Pairs with RPM apps and telehealth gateways so temperature data reaches the platform without manual entry, reducing transcription errors in remote chronic care management.
Connected Thermometers

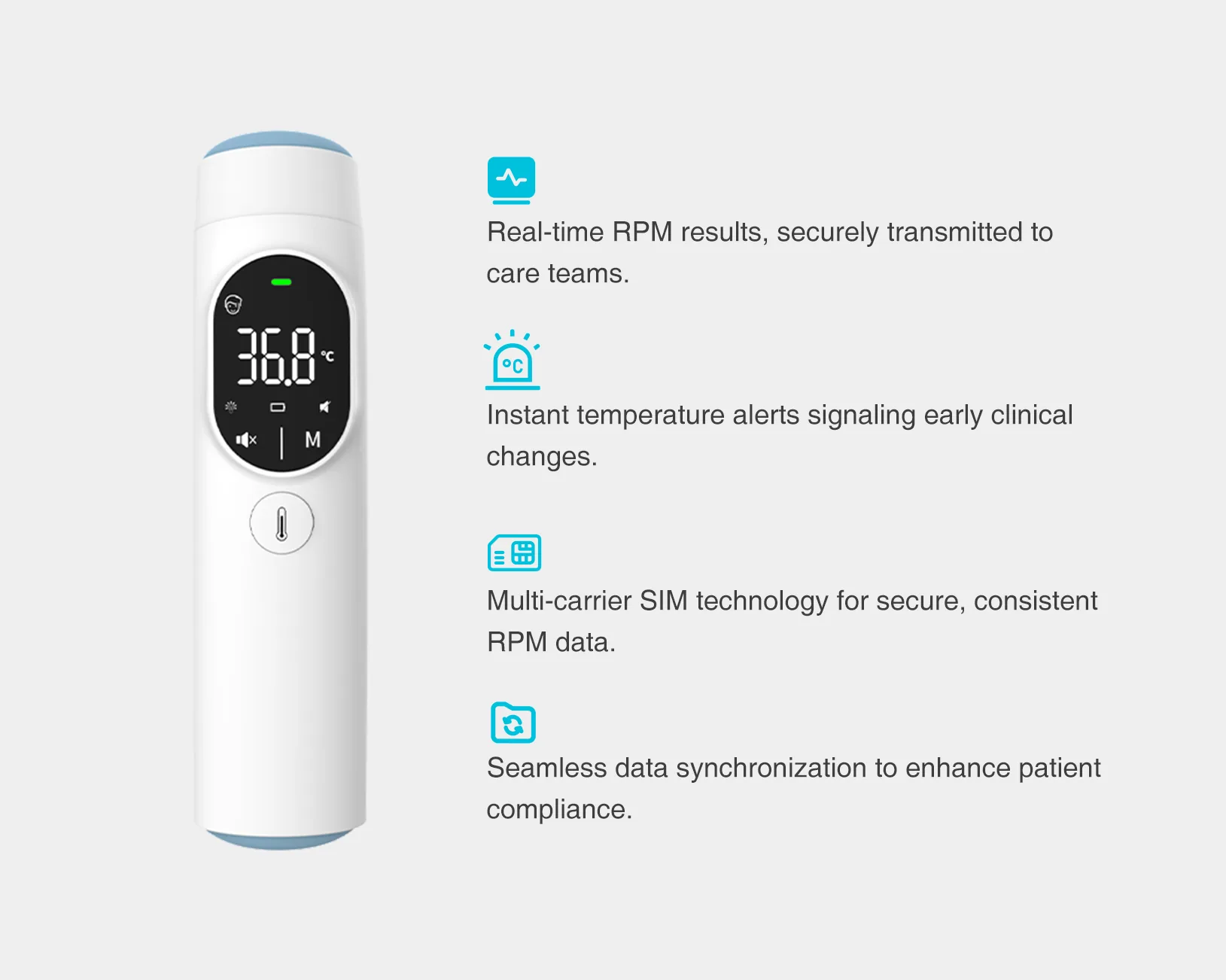

RPM Core AOJ-20F Pro Infrared Thermometer
Model AOJ-20F Pro
Dual-mode infrared thermometry for rapid, clinical-grade monitoring across all age groups.
Bluetooth
Overview
Forehead and ear measurement in one instrument, with Bluetooth pairing to the gateway you already run. The AOJ-20F Pro is a professional infrared thermometer for telehealth and remote care programmes. It reads surface and core temperature in about a second, stores the last 40 readings on the device, and hands them to your RPM app or gateway over Bluetooth — so temperature tracking stops depending on a patient writing numbers down. Note that this model is a Bluetooth peripheral, not a standalone cellular device: it pairs to a gateway or app.
Designed for connected care
Forehead, ear and object in one device
Dual-mode clinical thermometry plus an object-temperature mode, on a high-definition LED display with 40-reading on-device memory — a broader view of health trends from one interface.
Intelligent feedback the patient can act on

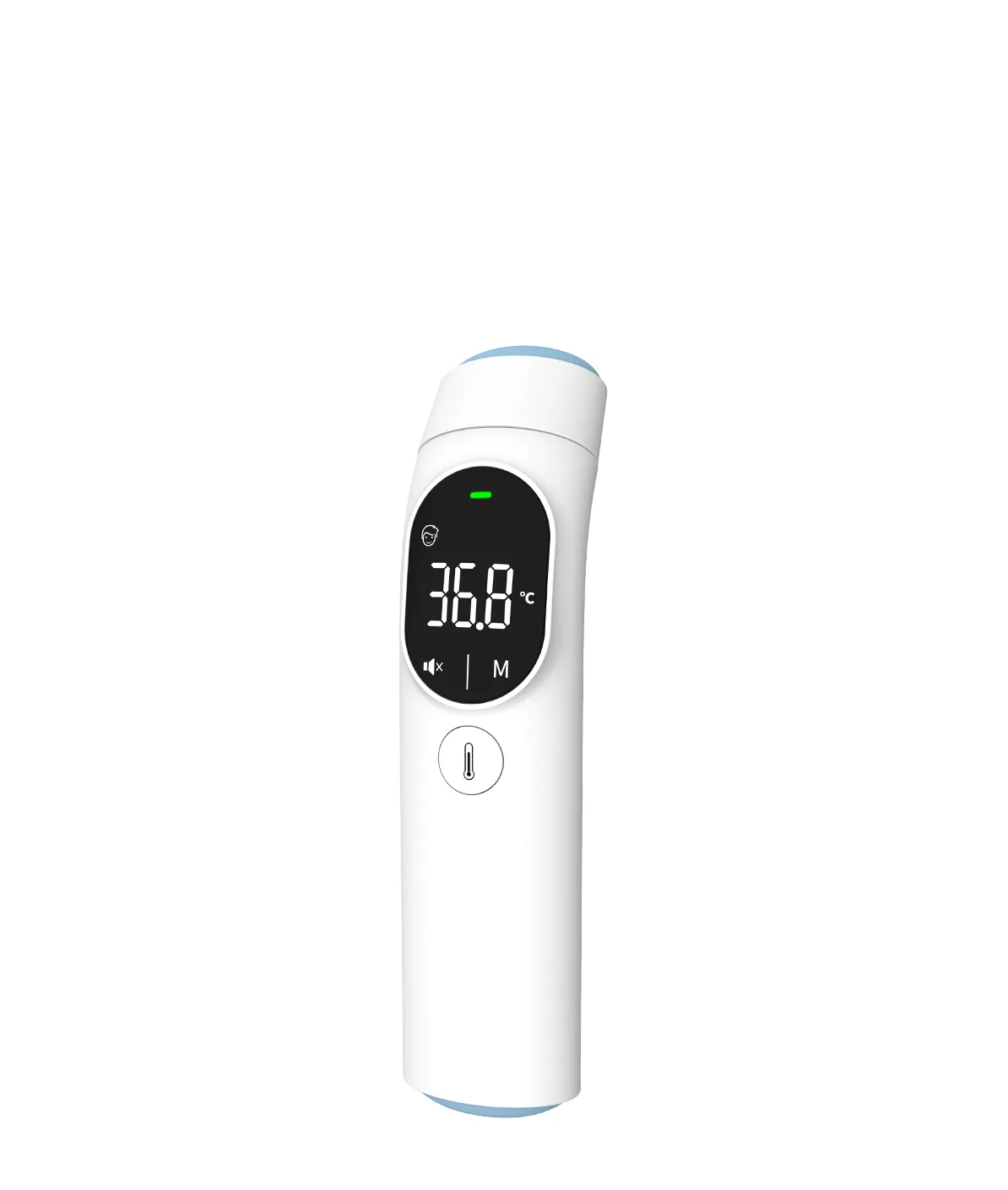

- Multi-colour backlit display with fever alerts gives intuitive visual cues at home
- High-precision infrared sensor returns a result in about one second
- Low-power Bluetooth in an ergonomic body, durable enough for high-frequency clinical use
One-click operation

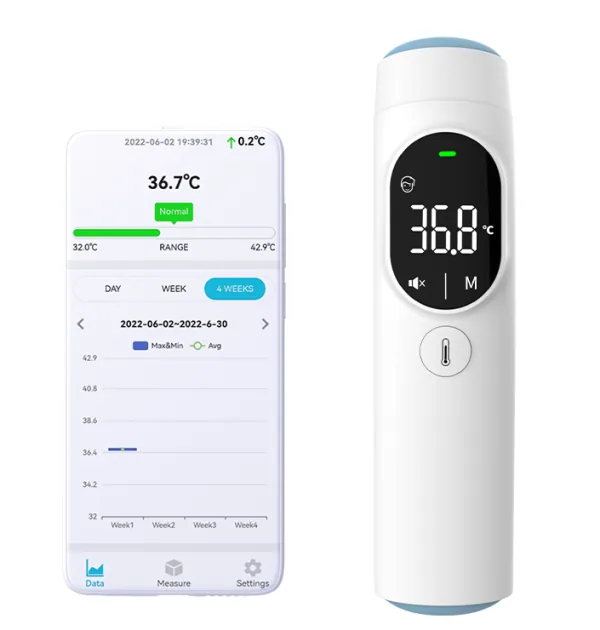

Rapid one-second measurement
A reading is available in about a second, which is what makes daily screening at home realistic.
One-touch measurement
One button starts the scan; modes are selected with the same control.
Simple measurement
One button, minimal learning curve
Clear, easy-to-read display
Device and data management
Flexible data transmission
Bluetooth handoff to the paired gateway, batched at the interval your platform prefers.
Cloud data sync
Once paired, measurements reach the platform in full compliance with healthcare data protection standards.
Standards-based integration
Built on industry-standard protocols for integration into existing remote health management software or an EHR.
Memory recall and audit trail
Forty readings retained on the device, bridging any gap in the Bluetooth link.
Specifications
| Model | AOJ-20F Pro |
|---|---|
| Measurement mode | Dual-mode infrared: forehead and ear, plus object temperature |
| Measurement range | 32.0–42.9 °C (89.6–109.2 °F) |
| Accuracy | ±0.2 °C within 35.0–42.0 °C |
| Resolution | 0.1 °C |
| Measurement time | Approx. 1 second |
| Display | High-definition LED, multi-colour backlight with fever alert |
| Memory | 40 most recent readings |
| Connectivity | Bluetooth low energy, pairs to RPM app or telehealth gateway |
| Power | 2 × AAA alkaline, DC 3 V |
| Battery life | Continuous operation on one set of cells |
| Dimensions | 165 × 40 × 43 mm |
| Weight | Approx. 81 g (with cells) |
| Operating conditions | 10–40 °C, 15–85% RH |
| Storage conditions | −20–55 °C, 10–95% RH |
| Ingress protection | IP22 |
| Auto power-off | 30 seconds after last operation |
| Classification | Type BF applied part, internally powered |
| Standards | ISO 80601-2-56, ISO 13485, CE, RoHS |
Bluetooth peripheral: pairs to an RPM app or telehealth gateway. It does not contain a cellular modem. Clinical accuracy stated in the released specification sheet issued with the quotation.
