Multi-carrier network support
Works across the major carrier networks in your market, so a single SKU can ship nationwide instead of being pinned to one operator.
Cellular Blood Pressure Monitors
RPM Core ARM-90B Lite Cellular Blood Pressure Monitor
Model ARM-90B Lite
Cellular blood pressure monitoring with one-touch operation for a faster, simpler user experience.
4G cellular
Overview
The same cellular blood pressure programme, with the workflow reduced to one button. The ARM-90B Lite is built for the patients who drop out of remote monitoring first: the ones who will not pair a device, will not open an app, and will not remember a sequence of steps. Put the cuff on, press once, and the reading is on its way over 4G cellular.

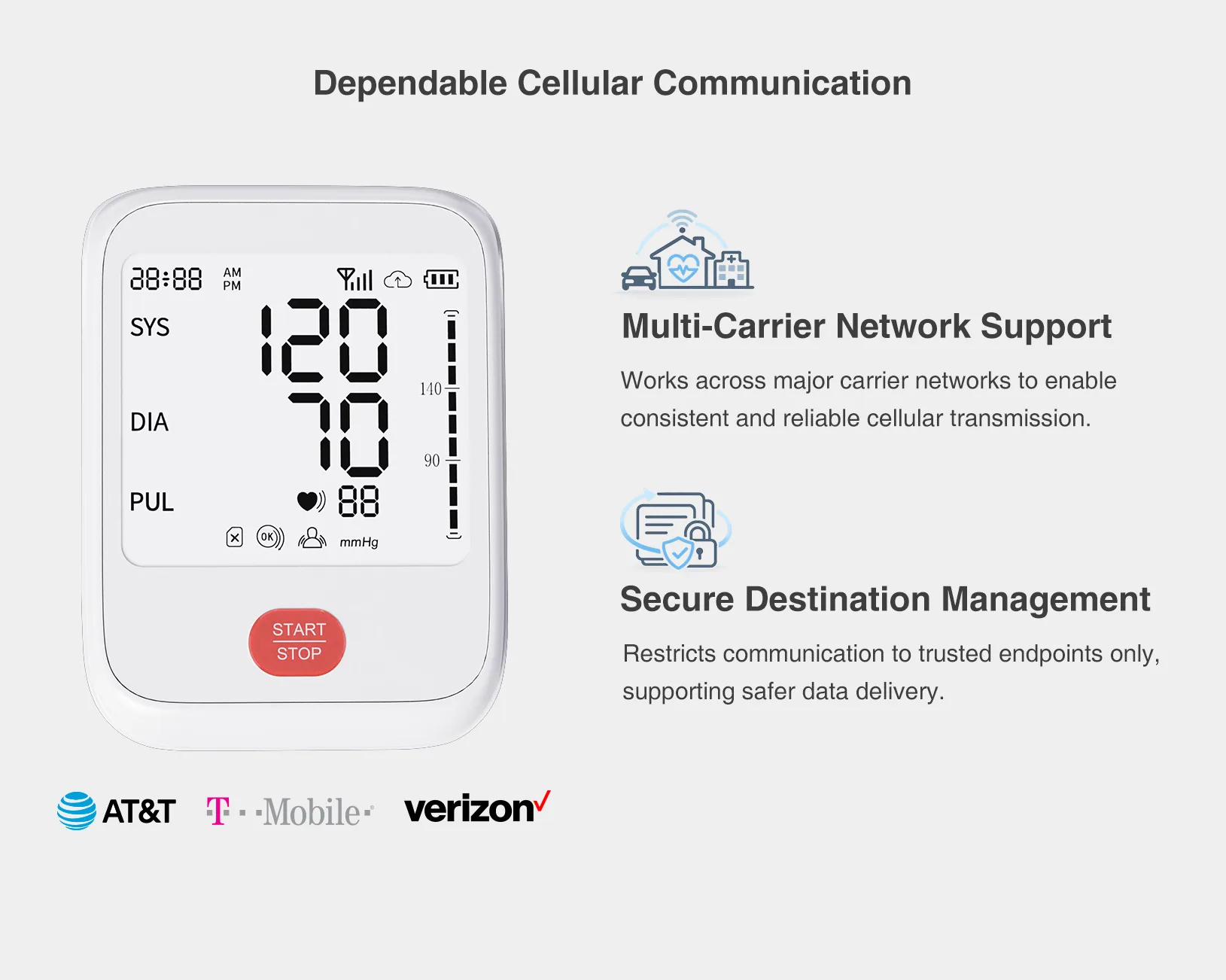

Reliable cellular communication
Secure destination management
Communication is restricted to trusted endpoints only. The device delivers to your platform and nowhere else, which keeps data handling defensible at audit.

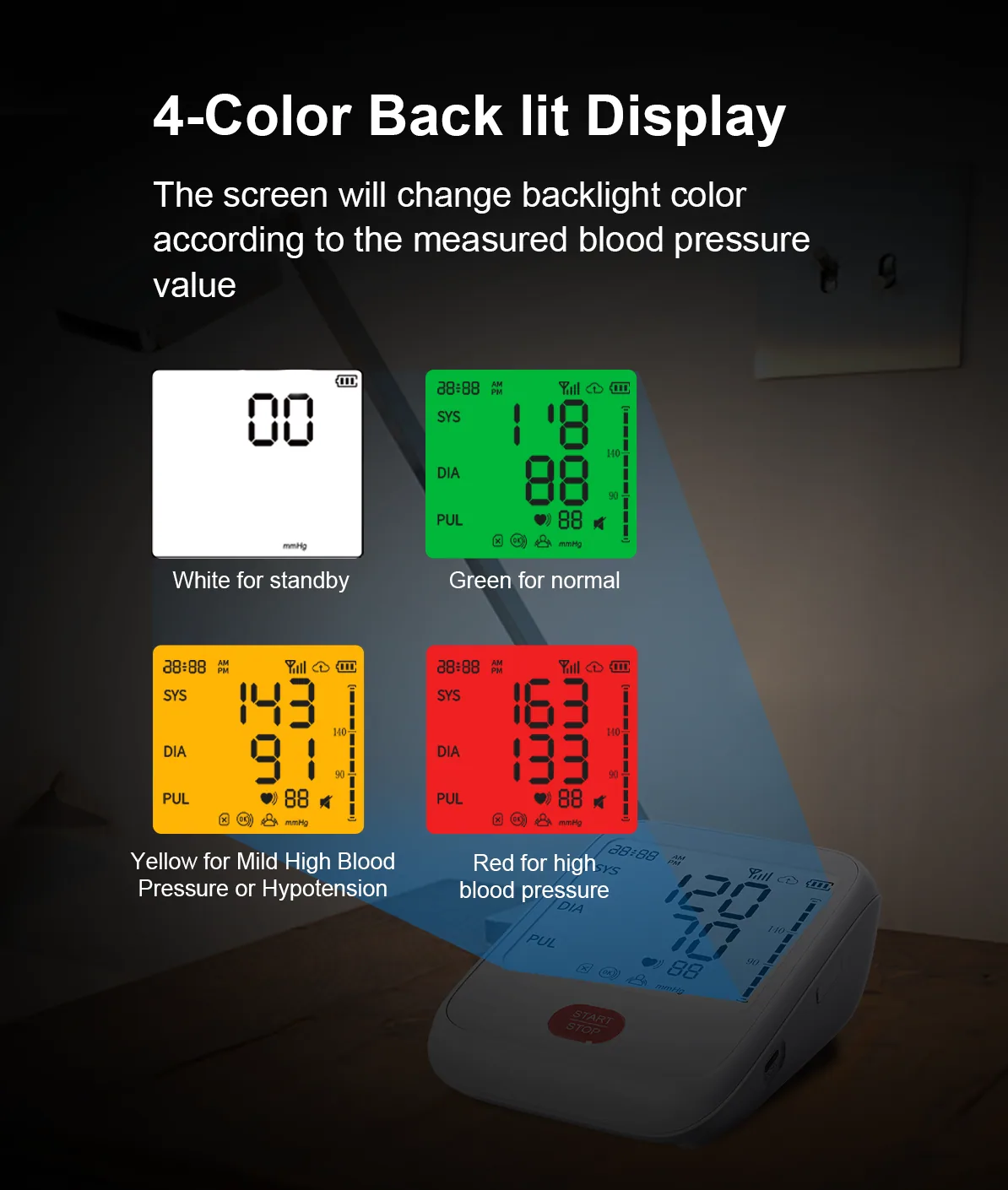

A backlight that answers before the numbers are read
- The screen changes backlight colour according to the measured blood pressure value
- Large-type numerals stay legible for patients with reduced vision
- No interpretation required at the point of measurement — the colour carries the message
One-click operation

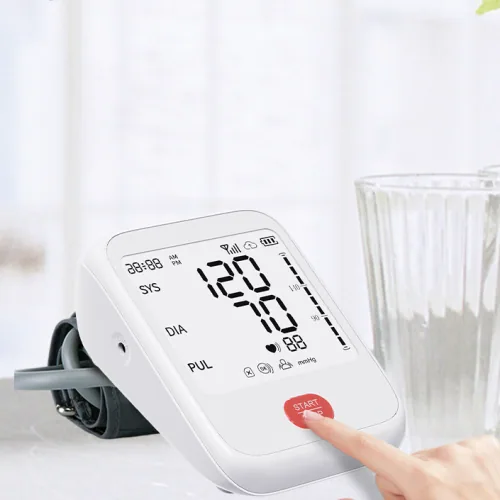

One-touch measurement
A single press runs inflation, measurement and upload. There is no second step for the patient to skip.

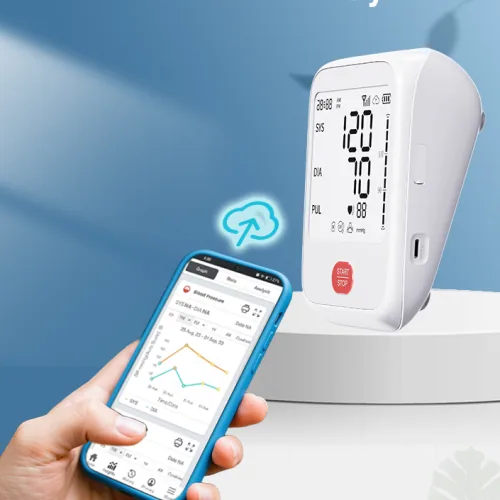

Automatic data sync
The reading is transmitted over the encrypted cellular channel as soon as it is taken, with no phone in the loop.
Simple operation
Easy trend tracking
Automatic data sync
Device and data management
Flexible data transmission
Upload windows and retry behaviour are configurable per programme at the platform level.
Cloud data sync
Readings arrive timestamped and structured, ready for the dashboard your care team already uses.
Open API connectivity
Documented interfaces for the RPM platform, EHR or population-health tool you run today.
Easy-to-use dashboard
Trend views that a nurse can read in seconds, not a data export that has to be rebuilt.
Specifications
| Model | ARM-90B Lite |
|---|---|
| Display | 4-colour backlit LCD, large-type numerals |
| Measurement method | Oscillometric, upper-arm cuff |
| Pressure range | 0–299 mmHg |
| Systolic range | 57–255 mmHg |
| Diastolic range | 25–195 mmHg |
| Pulse range | 40–199 beats/min |
| Pressure accuracy | ±3 mmHg |
| Pulse accuracy | ±5% of reading |
| Cuff circumference | 22–42 cm |
| Memory | 2 users × 199 readings |
| Connectivity | 4G LTE Cat M1 / NB-IoT, encrypted uplink |
| Network control | Multi-carrier; trusted-endpoint allow-list |
| Power | 4 × AA alkaline or USB-C, 800 mAh backup cell |
| Battery life | Approx. 200 measurements per set of cells |
| Dimensions | 130 × 100 × 60 mm (monitor) |
| Weight | Approx. 234 g (monitor, without cuff) |
| Operating conditions | 5–40 °C, 15–90% RH |
| Storage conditions | −20–55 °C, 10–95% RH |
| Ingress protection | IP21 |
| Auto power-off | 1 minute after last operation |
| Classification | Type BF applied part, internally powered |
| Service life | 5 years or 10,000 measurements |
| Standards | ISO 81060-2, ISO 13485, FDA-cleared, CE, RoHS |
Clinical performance validated to ISO 81060-2. The controlled specification sheet for your market is issued with the quotation.
