Multi-carrier network support
Operates across the major carrier networks in the U.S., including AT&T, T-Mobile and Verizon, on specialised IoT bands — consistent transmission without patient-side setup.
Cellular Body Scales

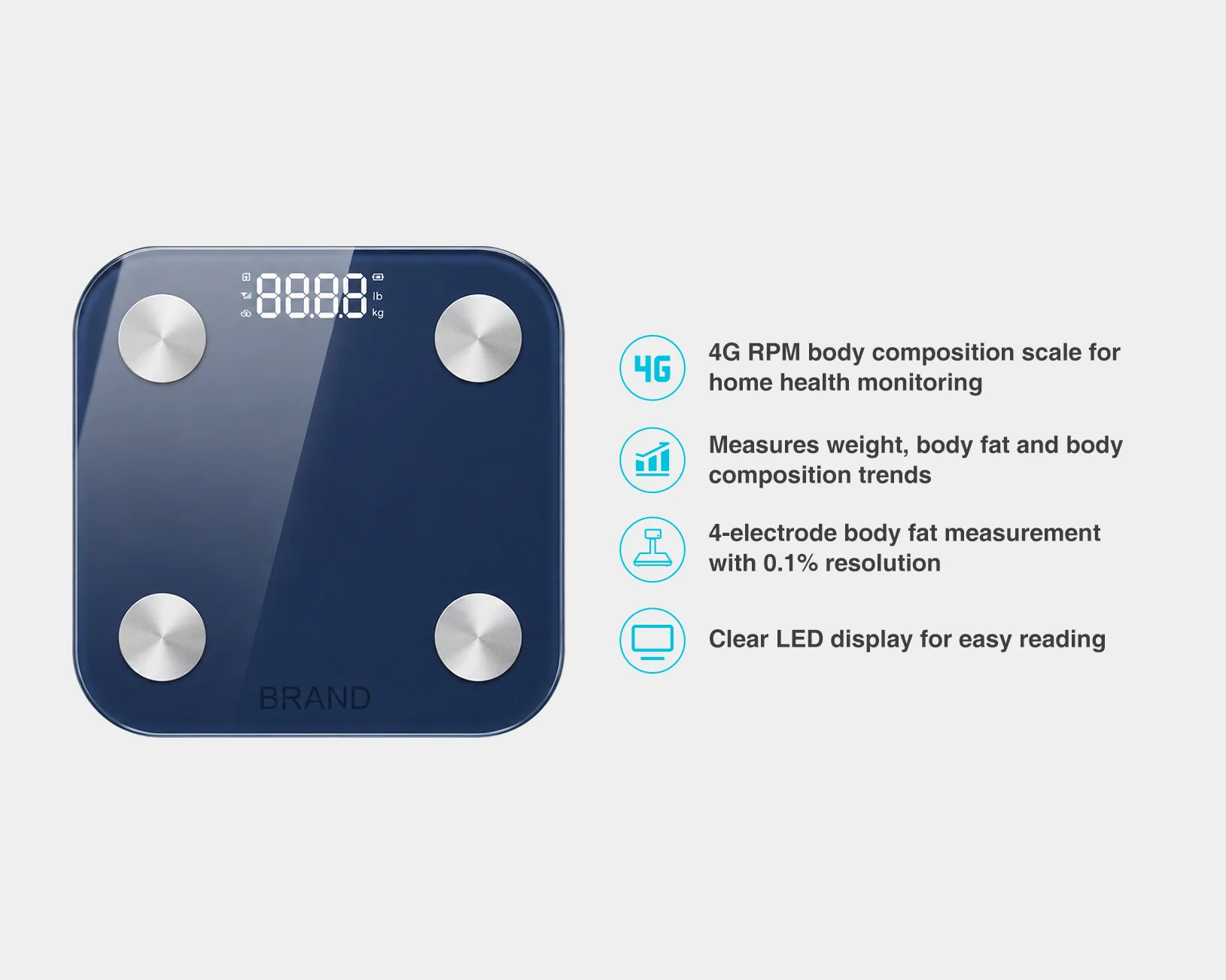

RPM Core SCL-80B Cellular Body Composition Scale
Model SCL-80B
Cellular body fat and weight monitoring with simplified operation for remote clinical tracking.
4G cellular
Overview
Weight and body fat on one cellular scale, for programmes where composition matters as much as mass. The SCL-80B is built for chronic metabolic and weight-management cohorts. It reports weight and body-fat tracking at 0.1 lb / 0.05 kg, starts on a sensor when the patient steps on, and syncs to the cloud over built-in 4G — no Bluetooth pairing, no app, no setup step that can go wrong in the home.
Reliable cellular coverage
Secure destination management
Communication is restricted to trusted endpoints, so sensitive biometric metrics reach your dashboards under enterprise-grade endpoint control.

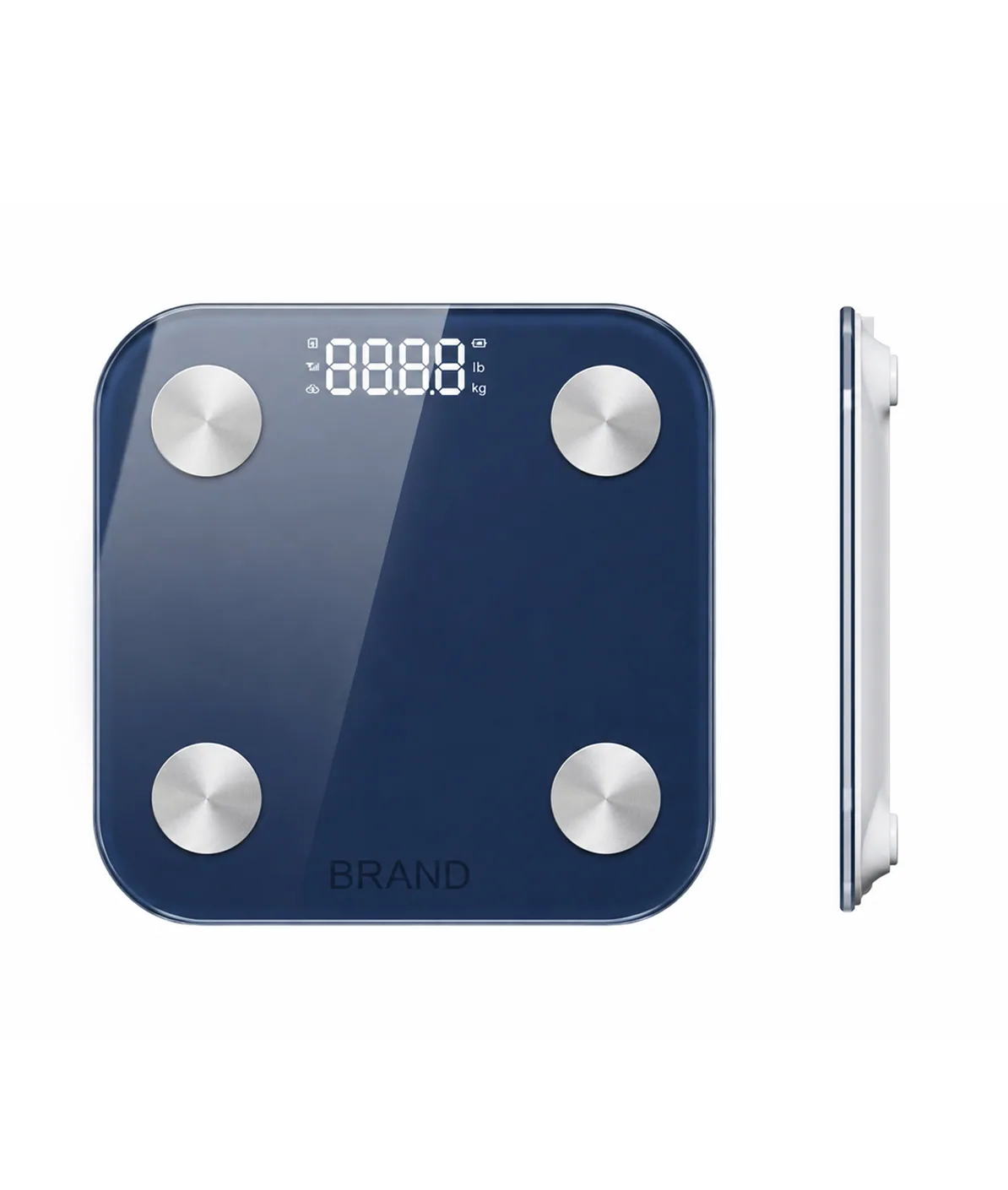

A clear LED display under any home lighting
- High-contrast, large LED display readable in any domestic lighting condition
- Weight graduations to 0.1 lb / 0.05 kg with body-fat tracking, locked within three to five seconds
- Suited to adult home health monitoring and elderly chronic care
Zero-setup operation

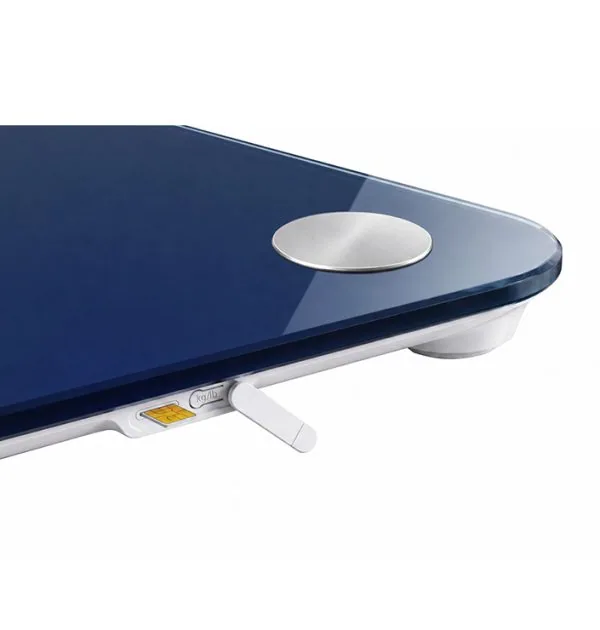

Rapid measurement in seconds
The result and the upload both complete in seconds, so the routine never becomes a chore.

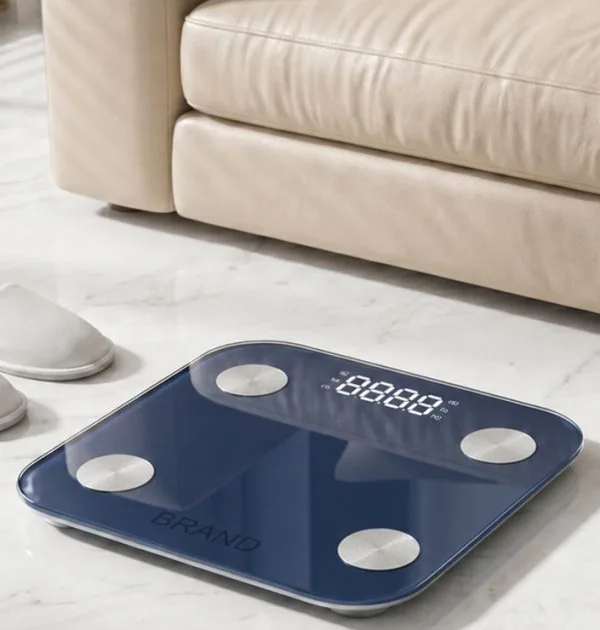

Sensor-activated startup
Stepping onto the platform wakes the scale and begins the measurement — no button to find first.
Automatic cloud data sync
Simplified user operation
Visual health trend analysis
Device and data management
Flexible data transmission
Weight and composition readings arrive together, structured for trend analysis.
Cloud data sync
Automatic sync keeps the record continuous even when nobody is watching the app.
Open API connectivity
Plugs into the digital health platform or EHR that already runs your programme.
Easy-to-use dashboard
Actionable, high-fidelity data rather than a raw export for the care team to interpret.
Specifications
| Model | SCL-80B |
|---|---|
| Measurement | Body weight and body-fat percentage |
| Maximum capacity | 180 kg / 397 lb |
| Resolution | 0.1 lb / 0.05 kg |
| Stabilisation time | 3–5 seconds |
| Display | High-contrast LED, large numerals |
| Startup | Sensor-activated on step-on |
| Platform | Tempered glass, alcohol-cleanable |
| Connectivity | 4G LTE Cat M1 / NB-IoT, encrypted uplink; no Bluetooth pairing |
| Carrier support | AT&T, T-Mobile, Verizon; optimised IoT bands |
| Network control | Trusted-endpoint allow-list |
| Firmware | Over-the-air (OTA) update |
| Integration | Open API and SDK |
| Power | 4 × AAA alkaline |
| Dimensions | Approx. 300 × 300 × 25 mm |
| Weight | Approx. 1.6 kg |
| Operating conditions | 5–40 °C, 15–90% RH |
| Storage conditions | −20–55 °C, 10–95% RH |
| Ingress protection | IP21 |
| Classification | Type BF applied part, internally powered |
| Standards | ISO 13485, CE, RoHS |
Body-composition figures are trend indicators for remote monitoring, not a diagnostic measurement. The controlled specification sheet for your market is issued with the quotation.
