AOJ-20D · Infrared Thermometers

AOJ-20D Non-contact Infrared Thermometer

1. One button operation, Instant reading in less than 1 second
2. Audio and visual fever warning
3. Perfect for use with newborns, infants, children or adults
4. Store up to 40 temperature readings
5. CE and FDA approved

OEM / ODM FDACE / EU MDRNMPAISO 13485ISO 14001

Request a quote Request controlled spec sheet

Product details

Content published for this model. Model designations and specification values are kept verbatim in every language.

Why Choose AOJ-20D Infrared Thermometer?

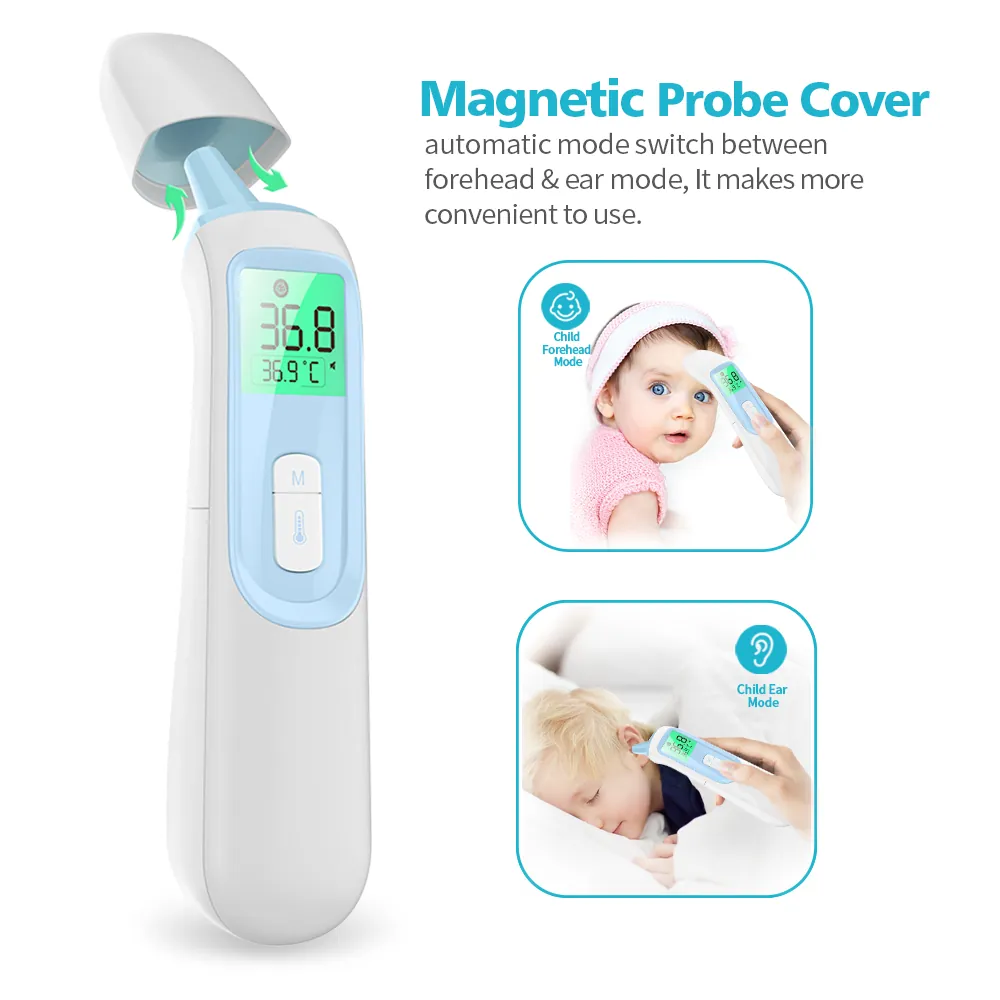

1. Multi Function : It has forehead mode, ear mode, object mode, 3 modes make the temperature measurement more accurate.

2 . Easy to use , the machine design intention is for simple and accurate.

3. Read the temperature in 1 second , so the parents no longer worry about the difficulty of temperature measurement, and sick children can sleep soundly without being disturbed by temperature measurement.

4.It can help you remember 40 sets of temperature data . You have no need to record it any more.

5. With Mute Mode .

6. Fever warning function;

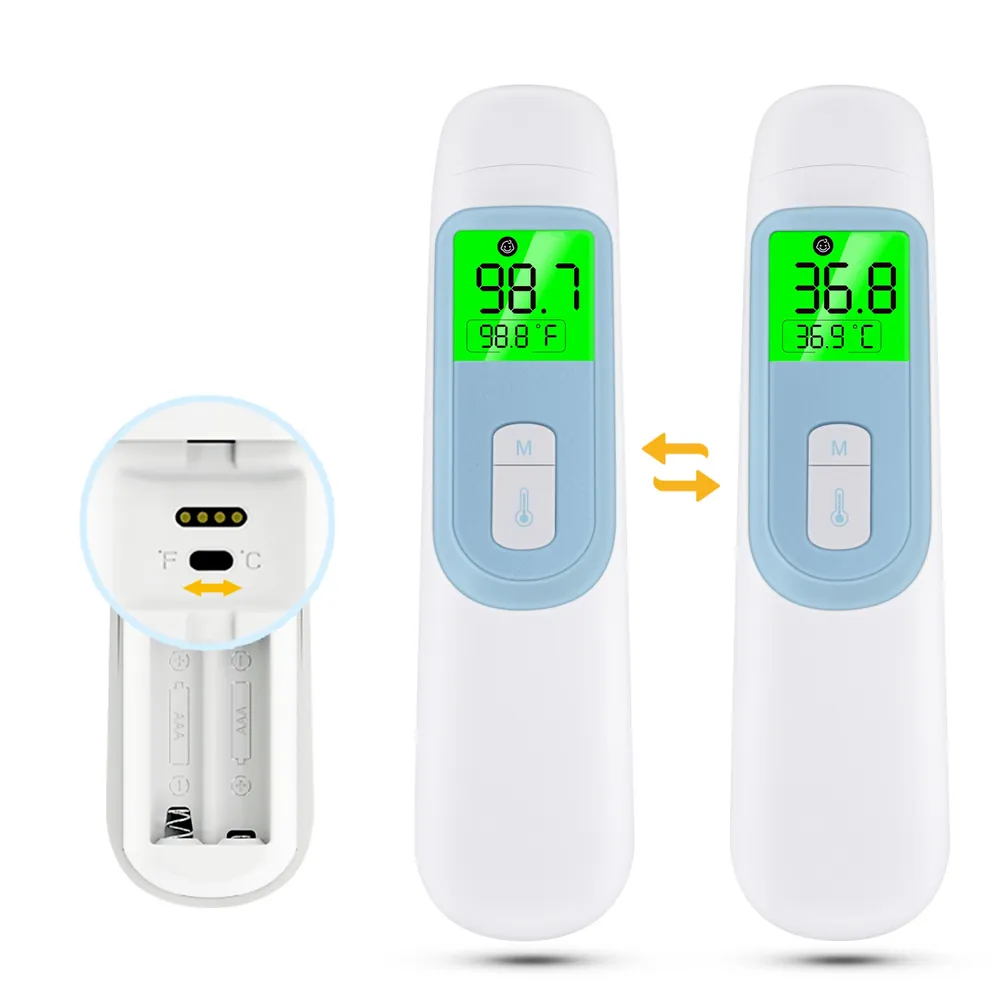

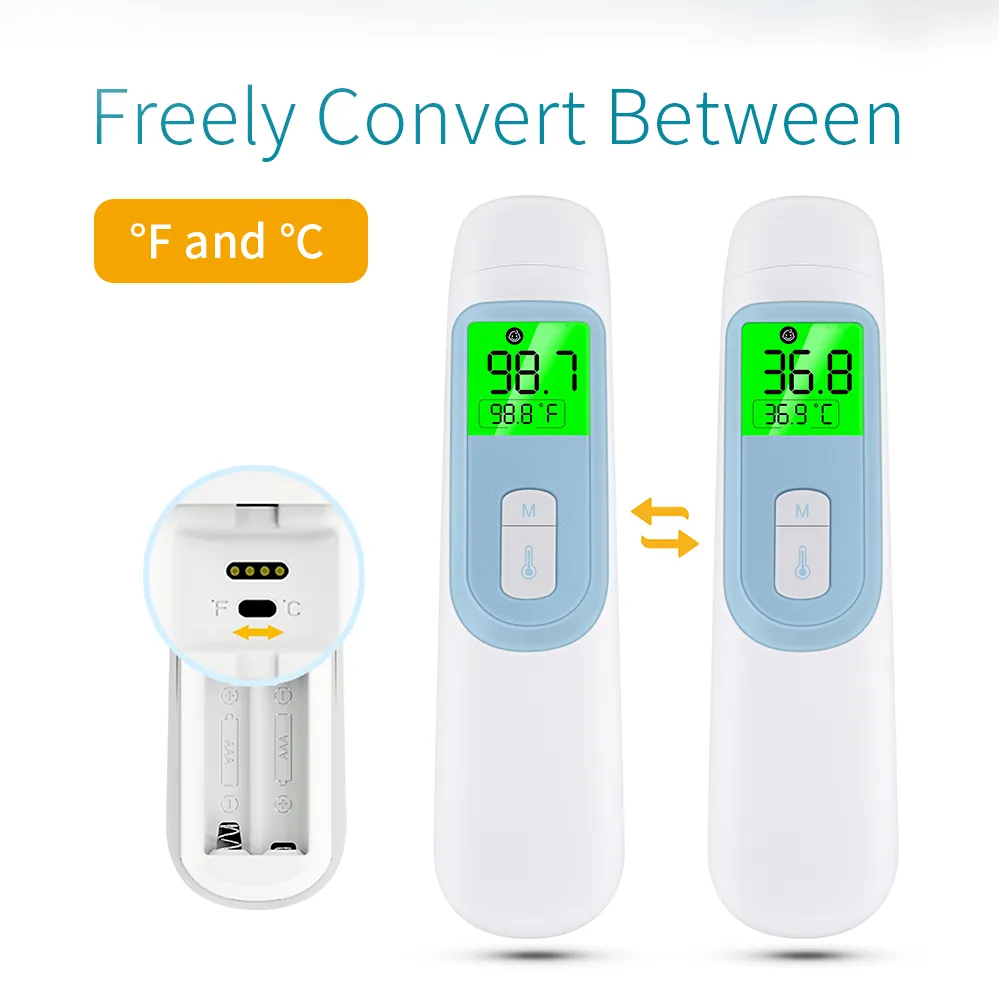

7. Conversion of Celsius/Fahrenheit Units;

8. Automatic shutdown function, low power consumption.

9. Slim cut, small body with large screen , show current and previous readings .

10 . Multi-function : strict inspection standard, control the accuracy within ±0.15℃ in blackbody mode, with thousands of clinical trials.

11. Product Quality Reliable : 100% Product Testing . Every unit will run environmental test between 15℃ to 35℃.

12. Product Design:

Unique Shape Patent Design Protection Product. It has Obvious Advantage to open the market than public model.

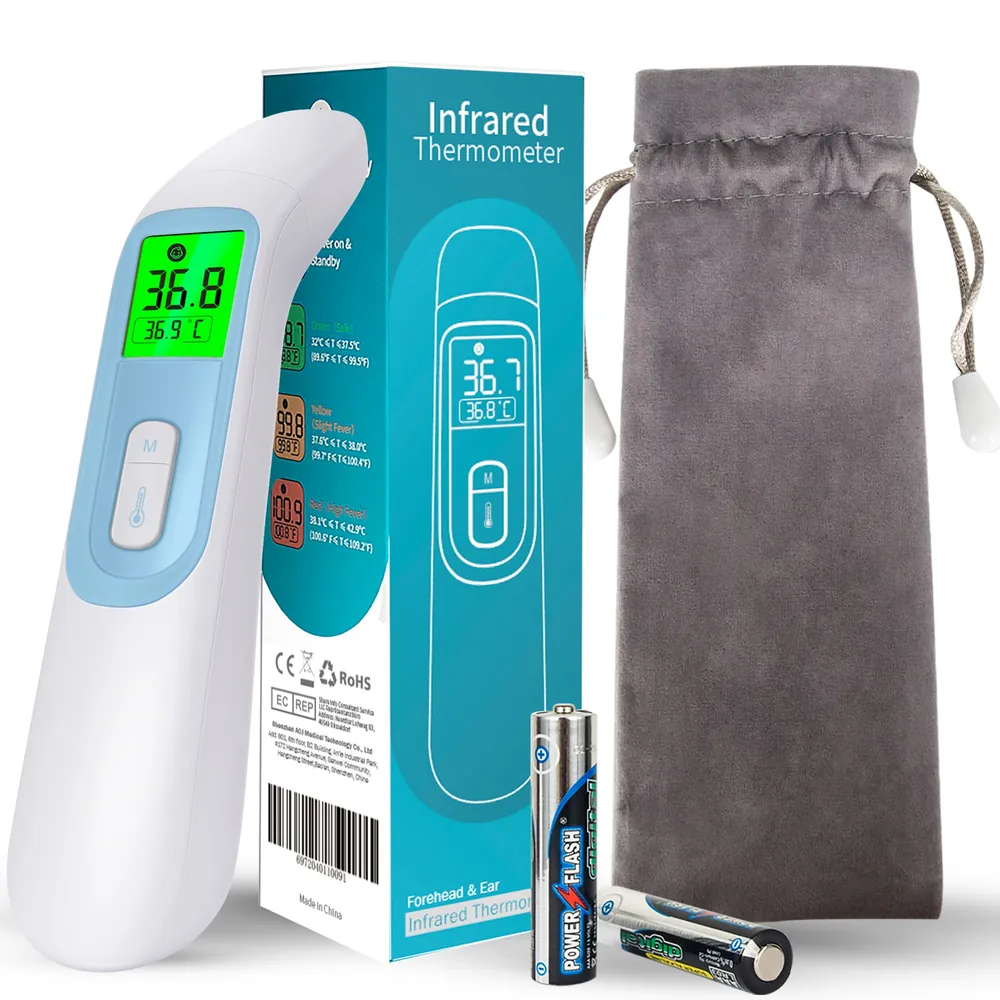

13. With stylish protective pouch with every purchase

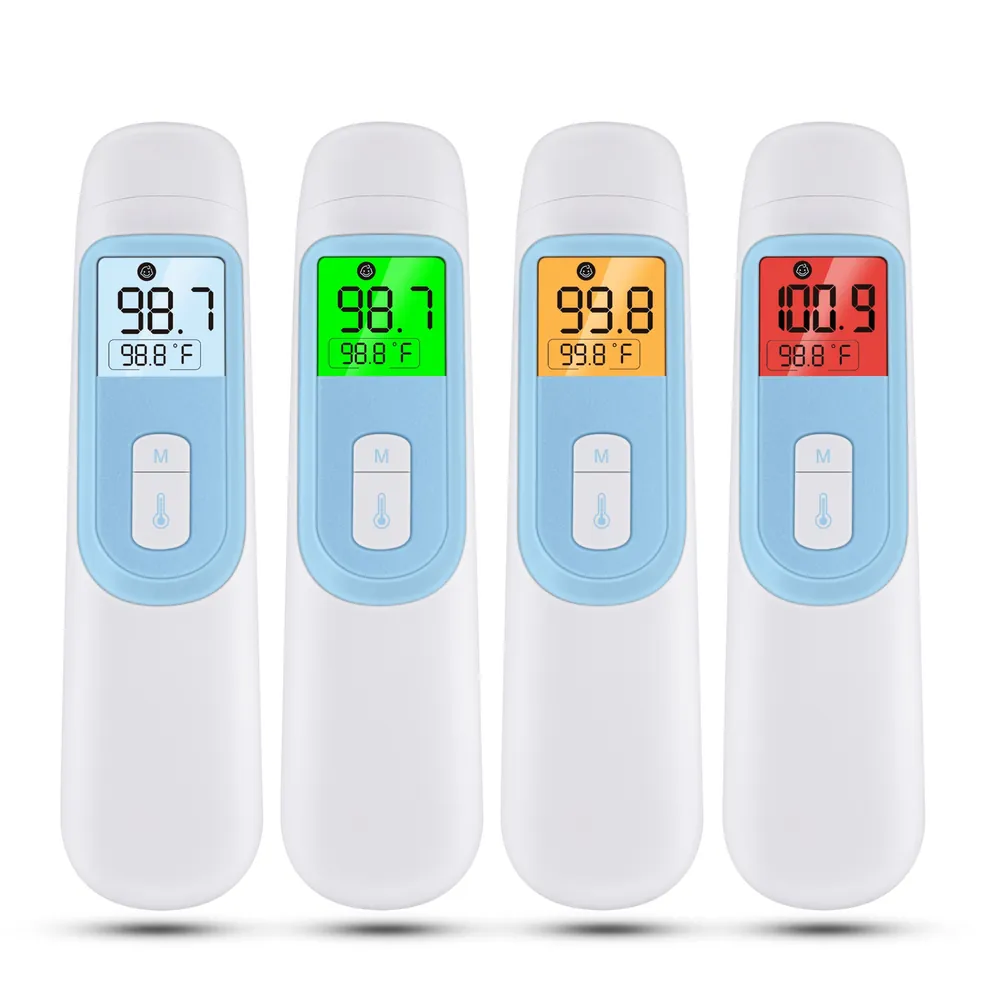

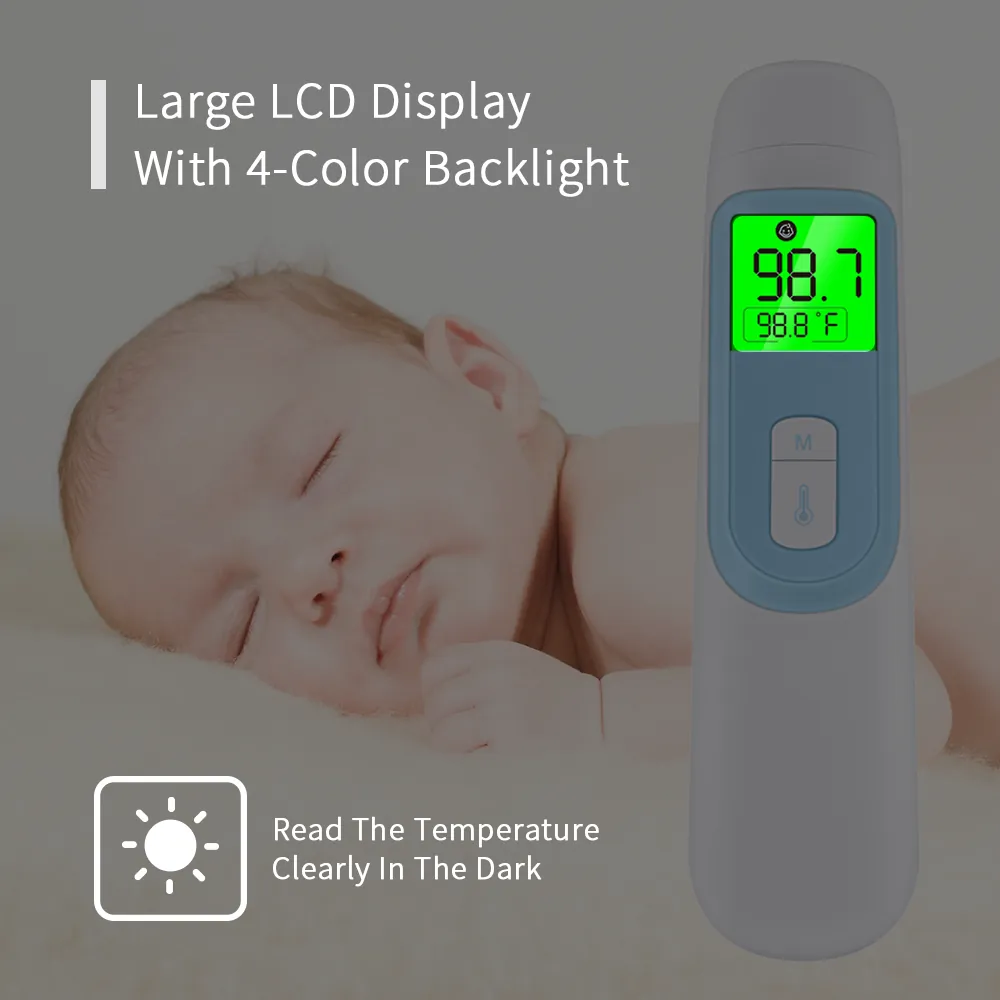

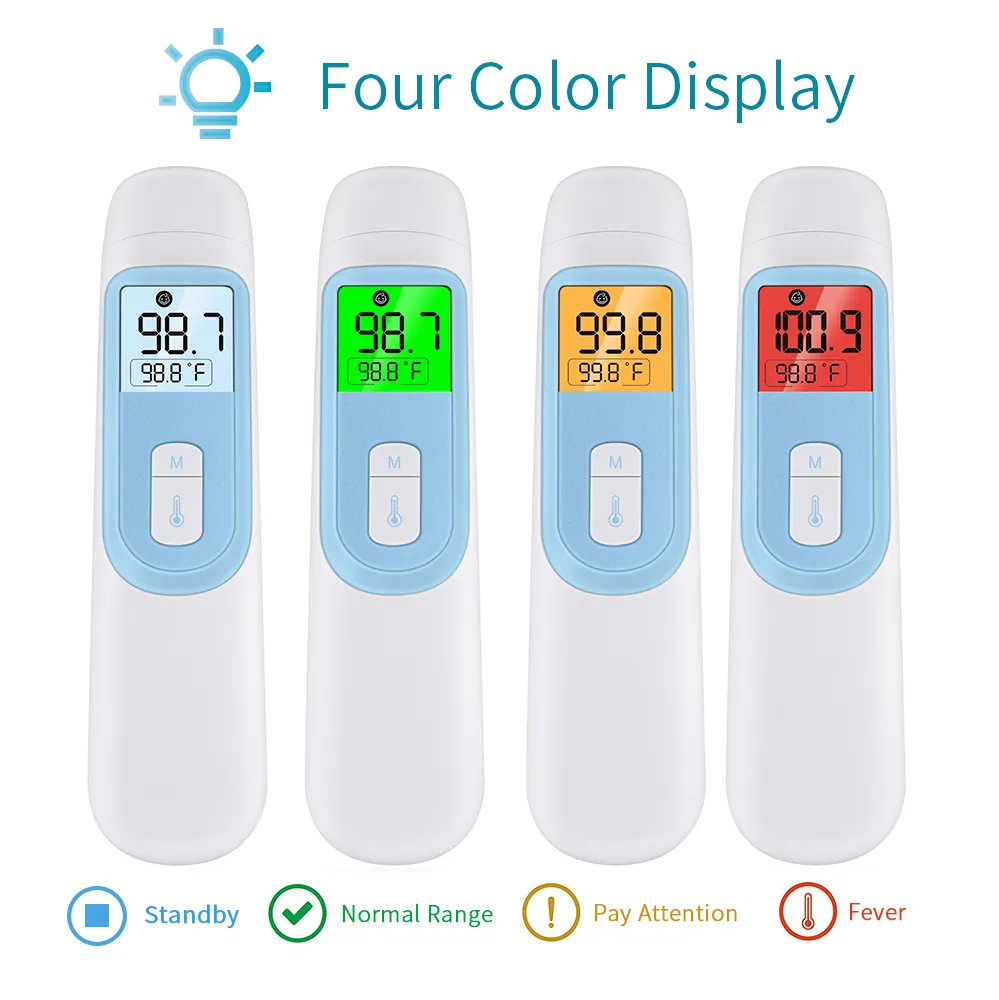

14. Backlight, color temperature indication

15. The AOJ Infrared Thermometer shuts off automatically after 10 seconds to preserve life of battery.

16. Low battery indicator, warns user to replace battery.

17. Factory Price , The price is very competitive.

18. Usage: The product is not only perfect for use with newborns, infants, children or adults, but also perfect to use test room temperature, milk, water, bath water and so on.

Specifications

Product name	FDA CE approved head non contact infrared thermometer digital infrared body thermometer
Applicable regulations and laws	ASTM E 1965-98 (Reapproved 2009) Standard Specification for Infrared Thermometers for Intermittent Determination of Patient Temperature
ISO80601-2-56 First Edition 2009-10-01 Medical Electrical Equipment - Part 2-56: Particular Requirements For Basic Safety And Essential Performance Of Clinical Thermometers For Body Temperature Measurement. (General Plastic Surgery/General Hospital)	—
Display	Segment LCD, green and red LCD backlight
Temperature units	℃ /℉, switchable
Power supply	DC 3V, AAAX2
Measurement range	Forehead: 32.0°C-42.9°C (98.6°F-109.2°F)
Ear: 32.0°C-42.9°C (98.6°F-109.2°F)	—
Object: 0°C-100°C (32°F-212°F)	—
Accuracy (Laboratory)	Ear & Forehead mode ±0.2℃ /±0.4℉
Object mode	±1.0°C/2.0°F
Display resolution	0.1℃/℉
Automatic shutdown	10s±1s
Memory	40 groups of values
Operational conditions	Temperature: 10℃-40℃ (50℉-104℉) Humidity: 15-95%RH non-condensing Atmospheric pressure: 70-106 kPa
Storage condition	Ambient Temperature: -20°C to 55°C (-4°F-131°F) Relative Humidity: 0-95% RH, non-condensing Atmospheric pressure: 50kPa to 106kPa
Battery	2*AAA, can be used for more than 3000 times
Weight & Dimension	80g (with battery), 143×35×41mm(body size)

AOJ-20D Infrared Thermometers — Product graphics 1

AOJ-20D Infrared Thermometers — Product graphics 2

AOJ-20D Infrared Thermometers — Product graphics 3

AOJ-20D Infrared Thermometers — Product graphics 4

Specifications

Product name	FDA CE approved head non contact infrared thermometer digital infrared body thermometer
Applicable regulations and laws	ASTM E 1965-98 (Reapproved 2009) Standard Specification for Infrared Thermometers for Intermittent Determination of Patient Temperature
Display	Segment LCD, green and red LCD backlight
Temperature units	℃ /℉, switchable
Power supply	DC 3V, AAAX2
Measurement range	Forehead: 32.0°C-42.9°C (98.6°F-109.2°F)
Accuracy (Laboratory)	Ear & Forehead mode ±0.2℃ /±0.4℉
Object mode	±1.0°C/2.0°F
Display resolution	0.1℃/℉
Automatic shutdown	10s±1s
Memory	40 groups of values
Operational conditions	Temperature: 10℃-40℃ (50℉-104℉) Humidity: 15-95%RH non-condensing Atmospheric pressure: 70-106 kPa
Storage condition	Ambient Temperature: -20°C to 55°C (-4°F-131°F) Relative Humidity: 0-95% RH, non-condensing Atmospheric pressure: 50kPa to 106kPa
Battery	2*AAA, can be used for more than 3000 times
Weight & Dimension	80g (with battery), 143×35×41mm(body size)

The table lists the specifications published for this model. The full controlled sheet — accuracy report, electrical ratings and packaging data — comes with your enquiry.

OEM / ODM

This model can be customised as a whole product: housing finish and silkscreen, display and language pack, cuff specification, app branding, retail packaging and manual. New variants can also be derived from the same platform.

Documentation and samples

The files a buyer normally needs before a program is signed off. Everything is issued against an enquiry and matched to the exact model.

Regulatory	Certificate copies and scope statements Test reports from accredited laboratories Declarations of conformity, and FDA clearance numbers where applicable Technical file extracts for your own regulatory submission
Technical	Controlled specification sheet: measurement method, accuracy, electrical ratings, cuff range Packaging, carton and master-carton data Protocol and SDK documentation for connected models
Commercial	Quotation with volume tiers MOQ and lead time for the model you select Sample arrangement before tooling

Request documents for this model

Certificates and test reports are issued per model, not per company. Tell us the target market and we send the matching set.

Request a quote

Tell us your target market, expected volume and timeline. We reply within one business day.
