AOJ-F101 · Forehead Thermometers

AOJ-F101 Forehead Thermometer

1. 0.5s Ultra-Fast & Accurate Measurement: Delivers temperature results in just 0.5 seconds with high laboratory accuracy of ±0.2°C / ±0.4°F in forehead mode.
2. 3–5 cm Non-Contact Safety Distance: Measures temperature safely at a 3–5 cm hygienic distance to prevent cross-contamination.
3. Dual Body & Object Modes: Supports both forehead body temperature mode (32.0°C - 42.9°C) and object mode (0°C - 100°C) for versatile daily use.
4. 40 Memory Recalls: Automatically records up to 40 sets of historical data and displays current and previous readings on screen to track temperature trends over time.
5. Audio & Visual Fever Warning: Features a large LCD screen with a 3-color backlight system (Green: Normal, Orange: Low Fever, Red: High Fever) combined with sound alerts for quick visual reading.
6. °C/°F Switchable Units: Easily converts between Celsius (°C) and Fahrenheit (°F) to accommodate different user preferences.
7. One-Button Operation & Extended Battery Life: Designed for simple one-button operation, powered by 2 AAA batteries (good for over 3,000 uses), and equipped with an auto power-off function (13±1 seconds) to conserve energy.

OEM / ODM FDACE / EU MDRNMPAISO 13485ISO 14001

Request a quote Request spec sheet

Product details

Content published for this model. Model designations and specification values are kept verbatim in every language.

This model was published on the legacy site as graphics only, with no accompanying copy. The first few are shown below and the rest can be expanded; for a written specification and feature summary of this model, request the controlled documentation with your enquiry.

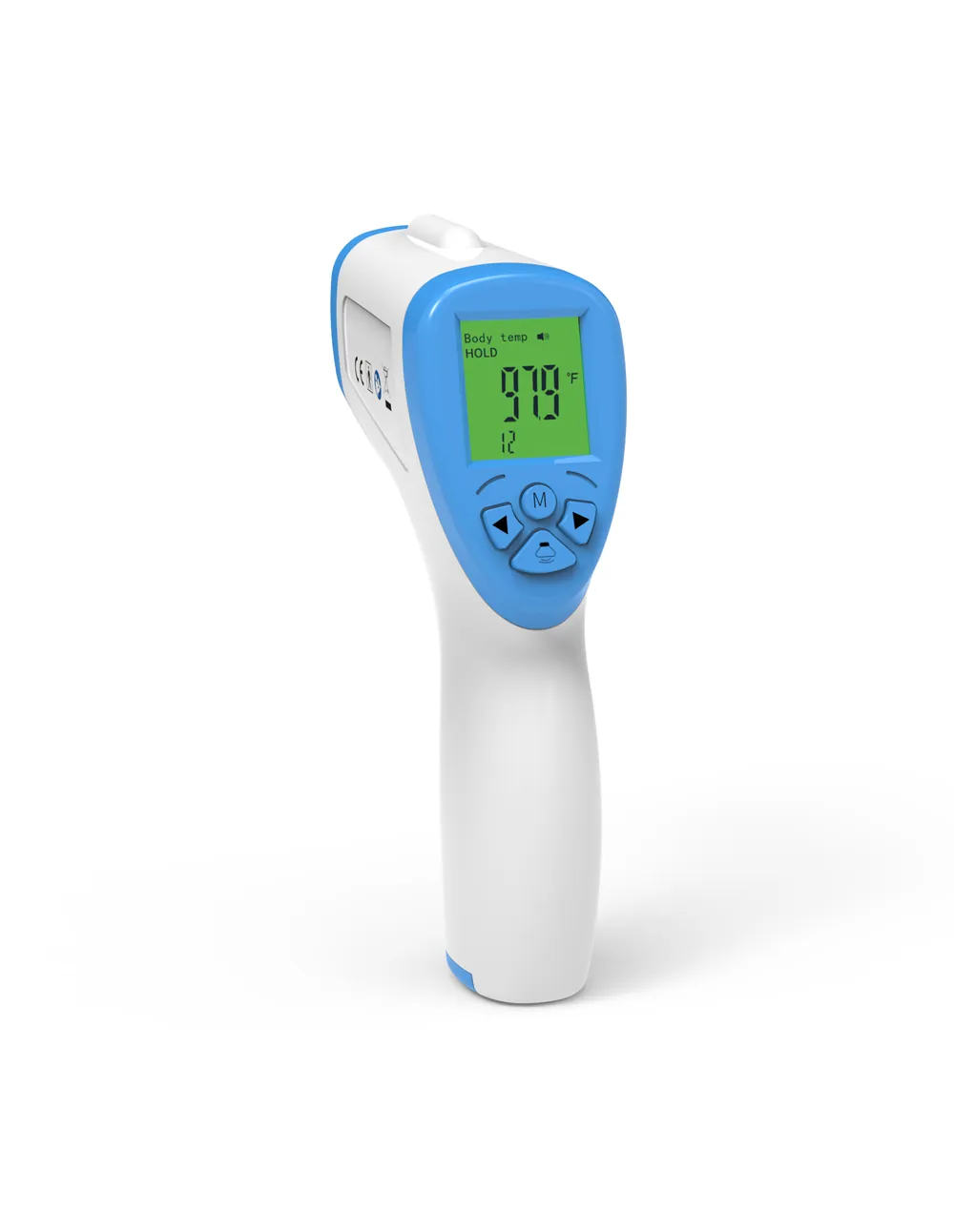

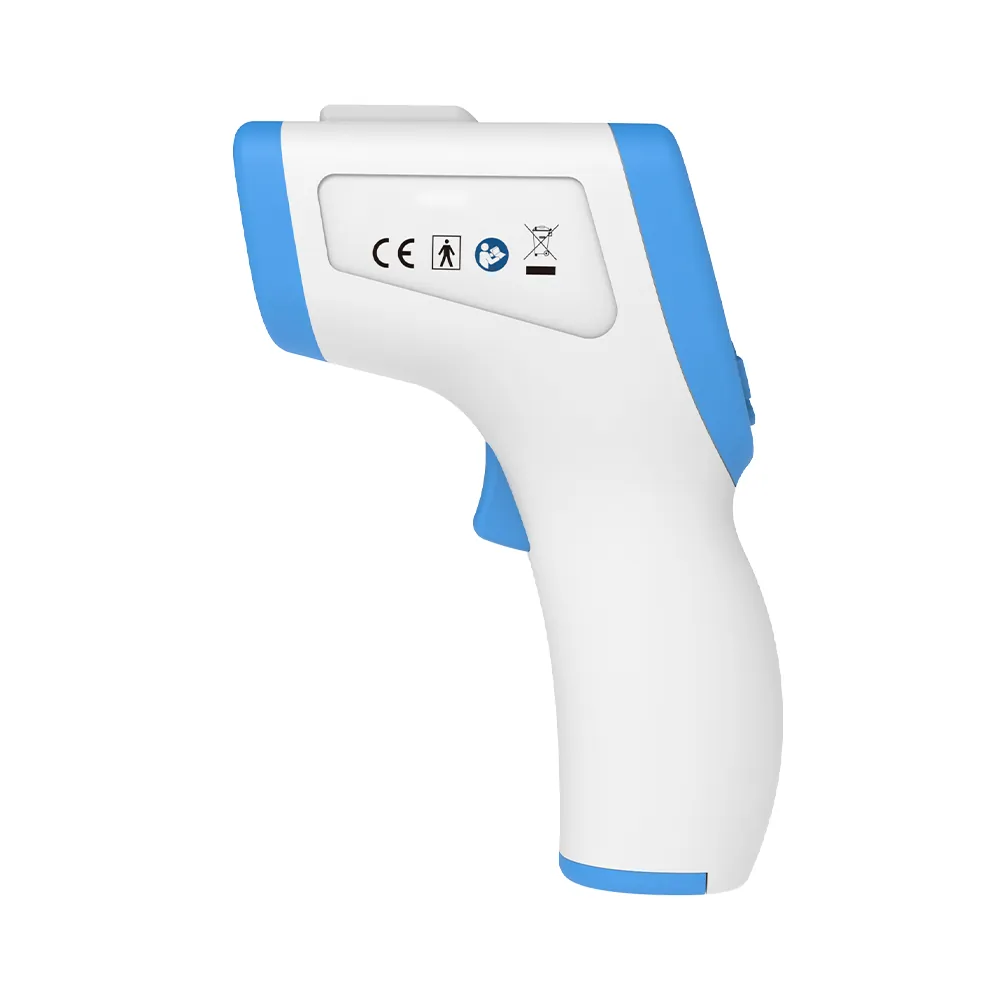

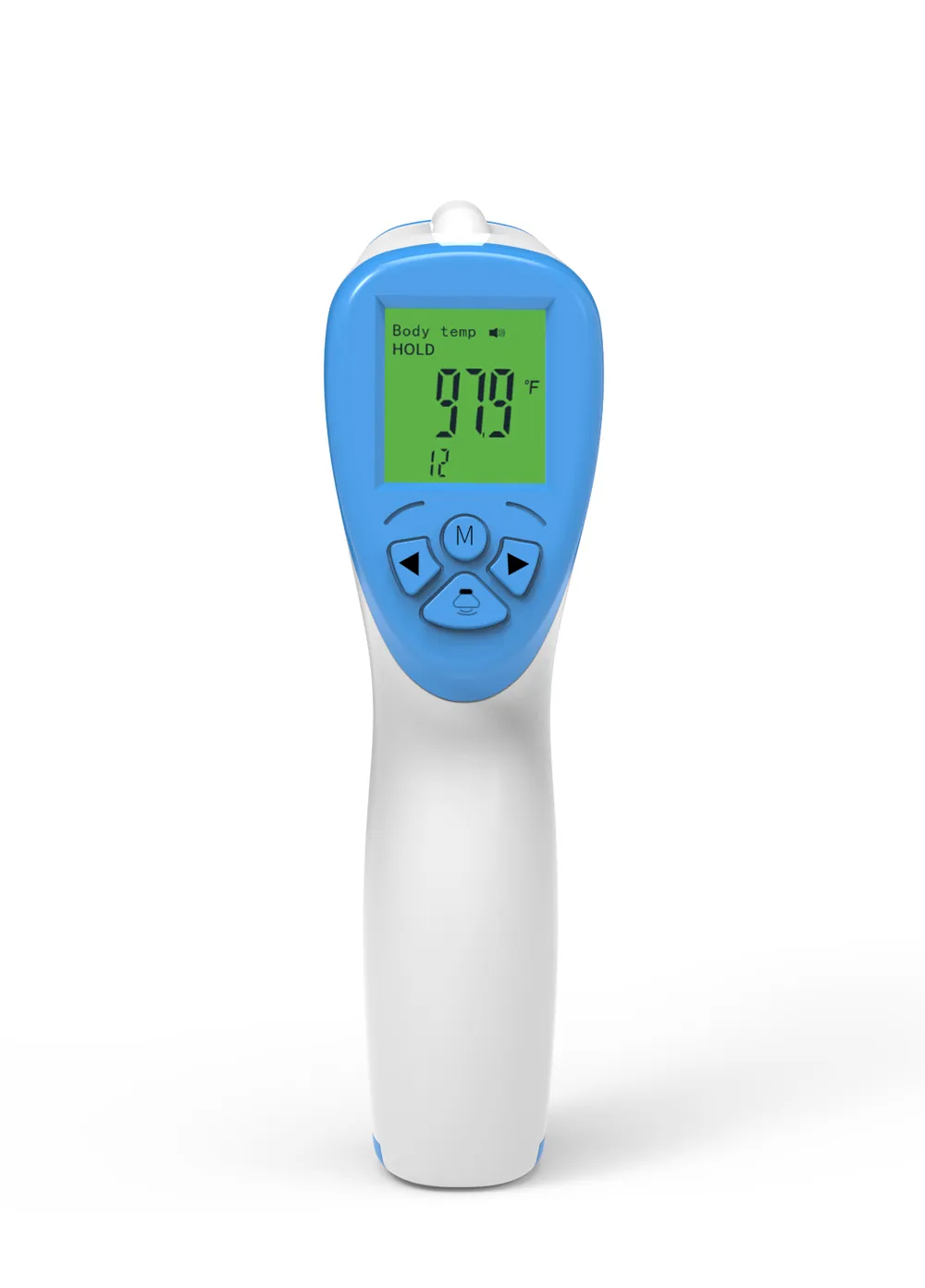

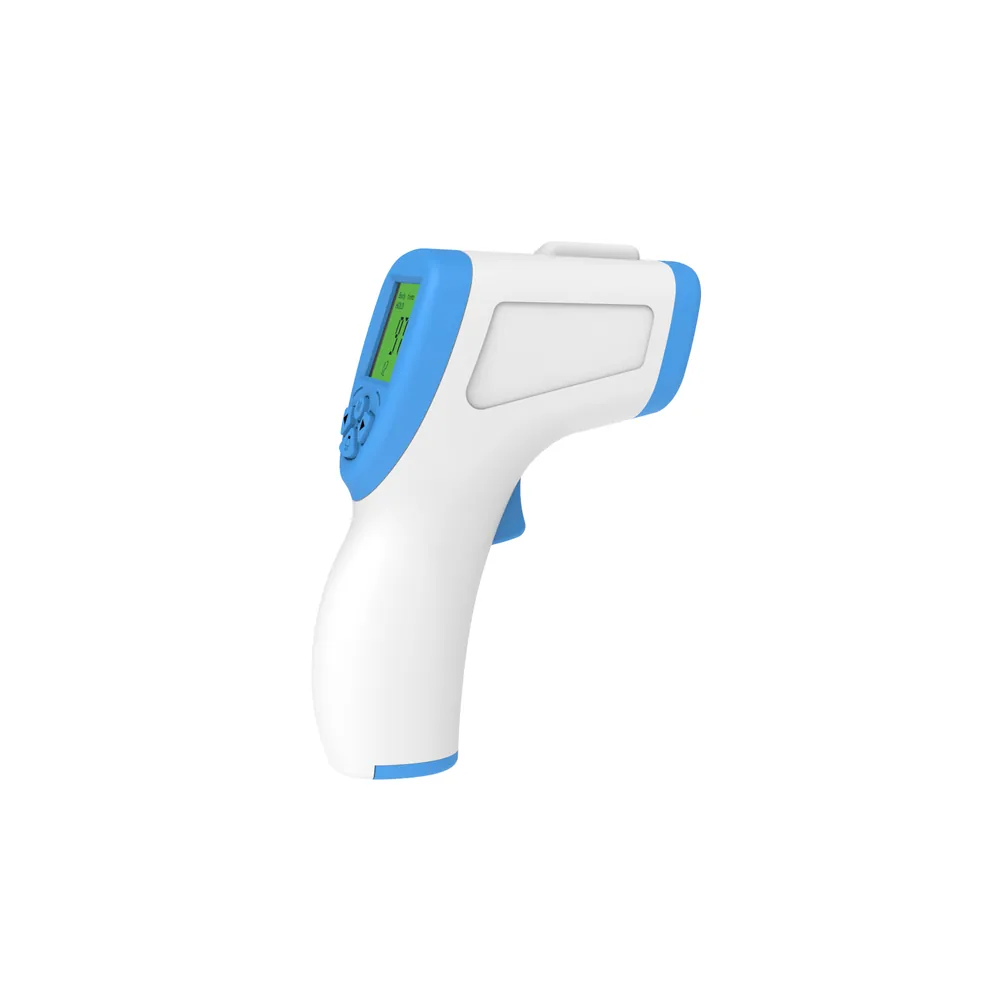

AOJ-F101 Forehead Thermometers — Product graphics 1

AOJ-F101 Forehead Thermometers — Product graphics 2

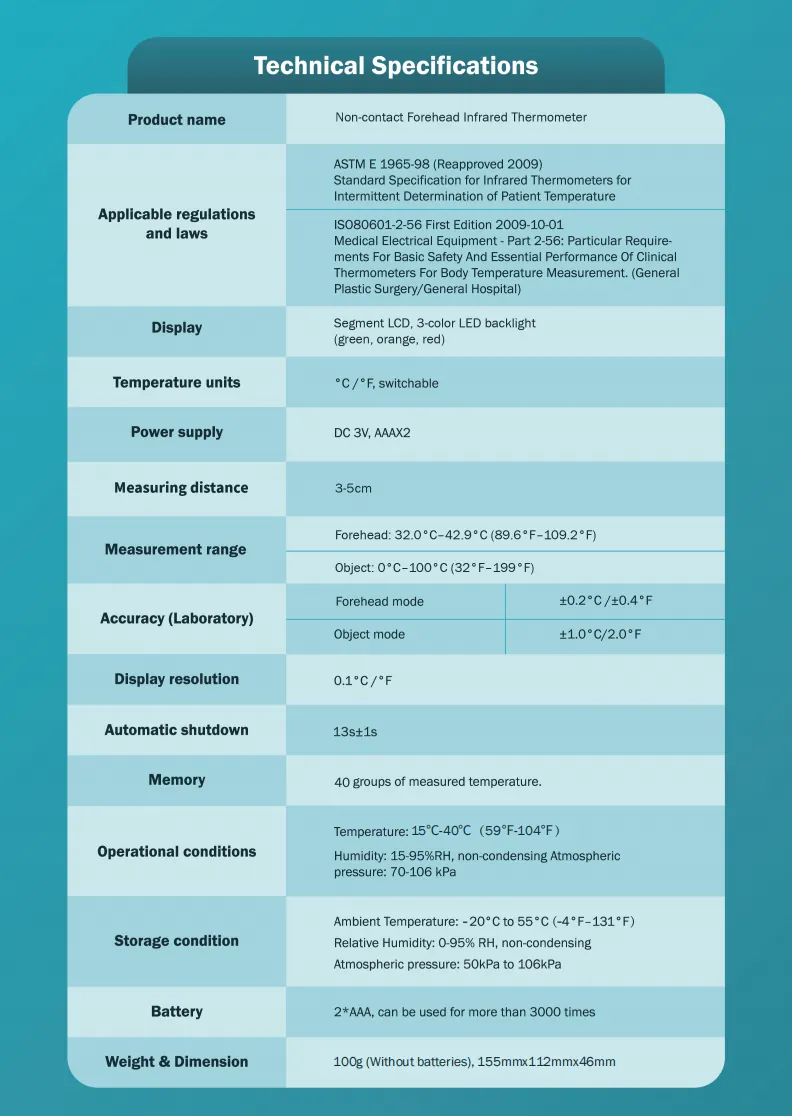

Specifications

The full controlled specification sheet for this model is provided with your enquiry: measurement method, accuracy, electrical ratings, cuff range and packaging data.

Model	AOJ-F101
Category	Forehead Thermometers
Certifications	FDA, CE / EU MDR, NMPA, ISO 13485, ISO 14001
MOQ	Depends on catalogue platform vs new tooling — confirm on enquiry
Lead time	3-15 days
OEM / ODM	Housing, display, language pack, app skin, packaging, manual

OEM / ODM

This model can be customised as a whole product: housing finish and silkscreen, display and language pack, cuff specification, app branding, retail packaging and manual. New variants can also be derived from the same platform.

Documentation and samples

The files a buyer normally needs before a program is signed off. Everything is issued against an enquiry and matched to the exact model.

Regulatory	Certificate copies and scope statements Test reports from accredited laboratories Declarations of conformity, and FDA clearance numbers where applicable Technical file extracts for your own regulatory submission
Technical	Controlled specification sheet: measurement method, accuracy, electrical ratings, cuff range Packaging, carton and master-carton data Protocol and SDK documentation for connected models
Commercial	Quotation with volume tiers MOQ and lead time for the model you select Sample arrangement before tooling
